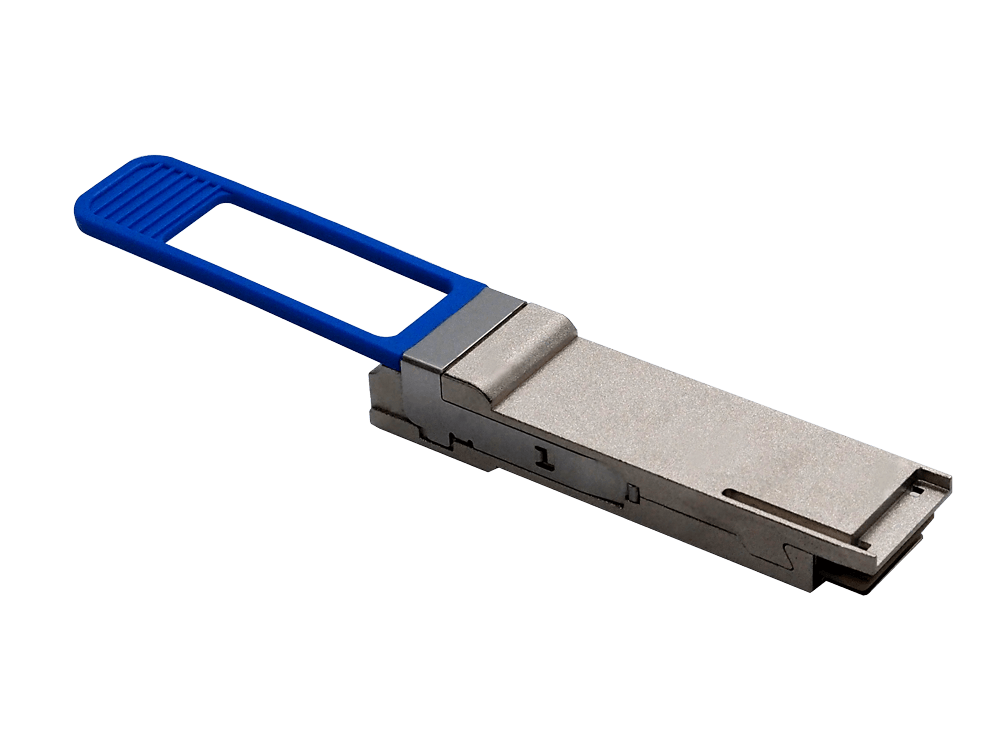

100-Gbps QSFP28 DR1/FR1 Optical Transceiver

Feature
  • Compliant to IEEE 802.3bm electrical specifications Clause 83E (CAUI-4)
  • Support both FEC (IEEE KR4 FEC 528, 514) and non-FEC mode on DR1/FR1 Host side
  • IEEE 802.3cd for 100G optical interface
  • Compliant to QSFP28 MSA (for Mechanical QSFP28 Housing) and SFF-8636 (for Memory Map)
  • Support 100 Gbps data rate links up to 500m(DR1) / 2km(FR1) via SMF
  • Maximum power consumption: 3.5W
  • Using standard duplex LC Connector
  • Hot pluggable electrical interface
  • 0 to 70°C case temperature operating range
  • RoHS-6 Compliant (lead-free)
Applications
  • 100GBASE Ethernet links up to 10km over SMF
  • InfiniBand EDR, FDR, & QDR
  • HPC Interconnects
  • Proprietary Interconnections
Ordering Information
  • P/N: C01100D1XF500(DR1) / C01100F1XF02K(FR1)
