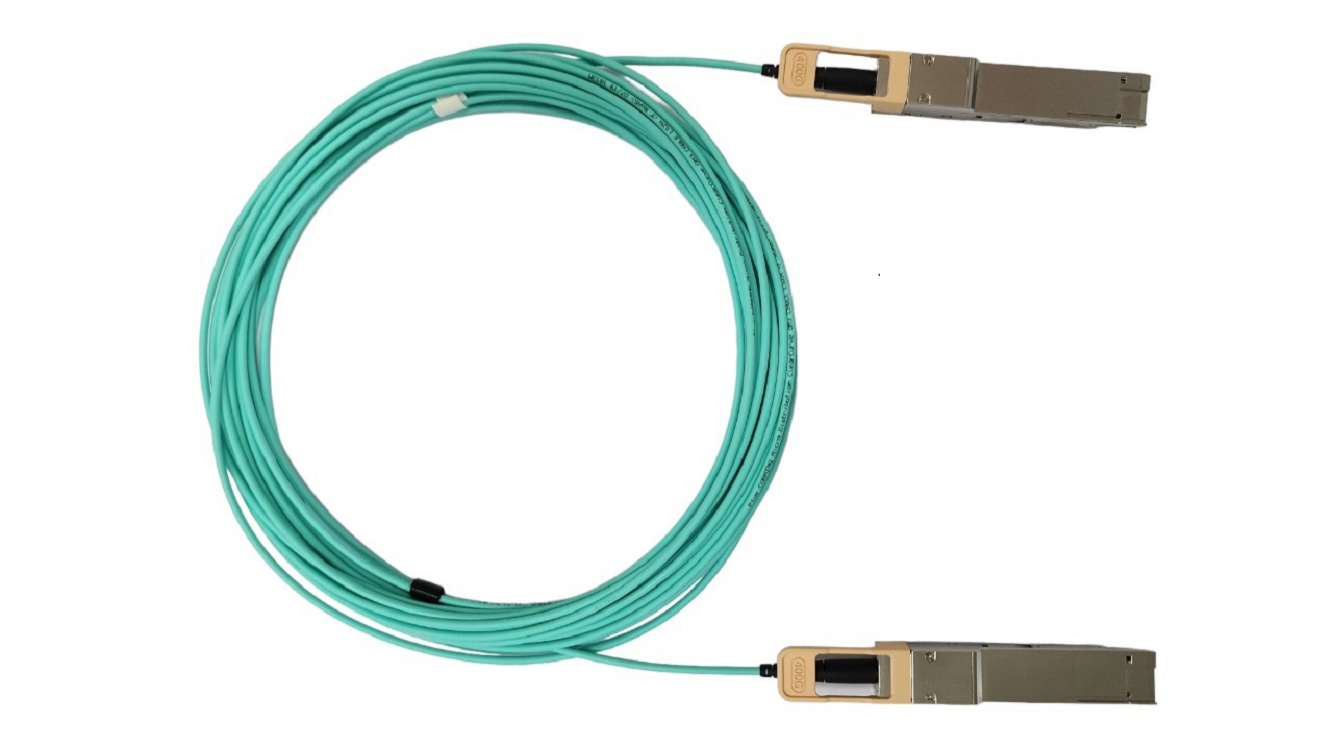

400-Gbps QSFP-DD GEN1 Active Optical Cable

Feature
  • Compliance to IEEE 802.3 bs
  • Compliance to QSFP DD MSA Rev 4.0 (for Memory Map) and 5.0 (for Mechanical QSFP-DD Housing)
    • Per CMIS 4, AOC module supports functions of Module Diagnostics and Remote Firmware Upgrade
  • Supports 400 Gbps data rate links up to 70m/100 m via OM3/OM4, respectively.
  • Typical Power Consumption: 10W (each port)
  • Hot pluggable electrical interface
  • Adopt either standard 1 Row by 16-channel MPO connectors inside module
  • 0 to 70°C case temperature operating range
  • RoHS-6 Compliant (lead-free)
Applications
  • Ethernet for 200GBASE-SR4
  • 400 Gb/s Ethernet Application
  • HPC Interconnects
  • AI application/training
  • Proprietary Interconnections
Ordering Information
P/N Description
5400AQDM001A-R01 400G AOC QSFP-DD 1M OM3 Round Cable LSZH(UL) Aqua (CMIS 4.0)
5400AQDM002A-R01 400G AOC QSFP-DD 2M OM3 Round Cable LSZH(UL) Aqua (CMIS 4.0)
5400AQDM003A-R01 400G AOC QSFP-DD 3M OM3 Round Cable LSZH(UL) Aqua (CMIS 4.0)
5400AQDM005A-R01 400G AOC QSFP-DD 5M OM3 Round Cable LSZH(UL) Aqua (CMIS 4.0)
5400AQDM007A-R01 400G AOC QSFP-DD 7M OM3 Round Cable LSZH(UL) Aqua (CMIS 4.0)
5400AQDM010A-R01 400G AOC QSFP-DD 10M OM3 Round Cable LSZH(UL) Aqua (CMIS 4.0)
5400AQDM015A-R01 400G AOC QSFP-DD 15M OM3 Round Cable LSZH(UL) Aqua (CMIS 4.0)
5400AQDM020A-R01 400G AOC QSFP-DD 20M OM3 Round Cable LSZH(UL) Aqua (CMIS 4.0)
5400AQDM025A-R01 400G AOC QSFP-DD 25M OM3 Round Cable LSZH(UL) Aqua (CMIS 4.0)
