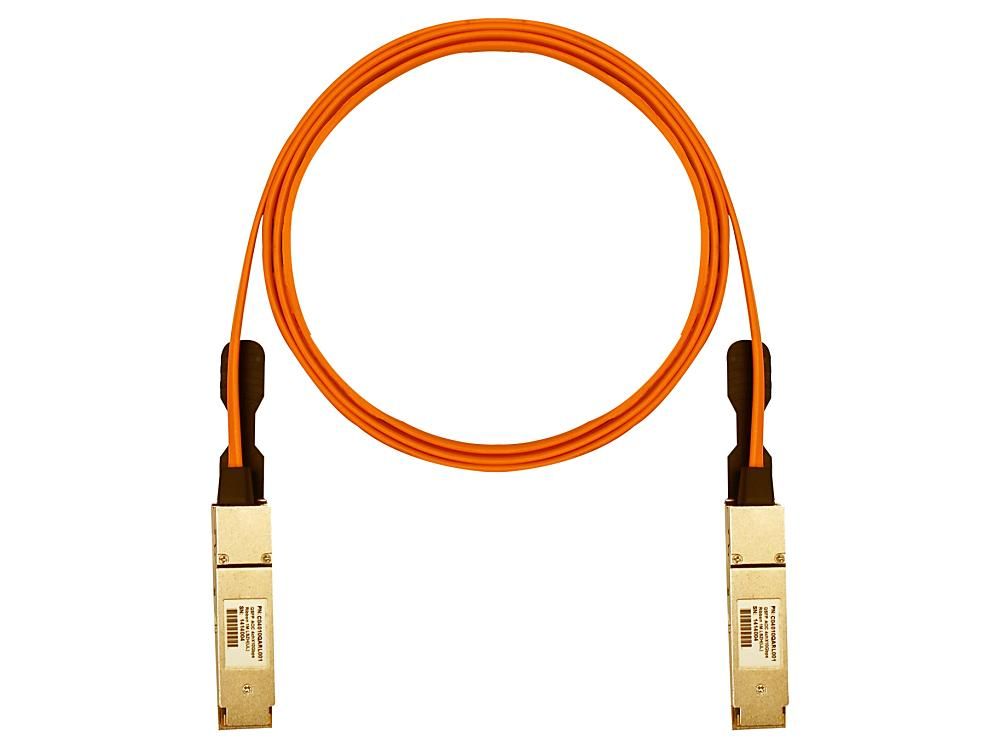

40-Gbps QSFP+ Active Optical Cable

  • 4-channel bi-directional AOC with aggregate bandwidth of 40-Gbps (Electrical Interface Only)
  • Compliance to QSFP DD MSA Rev 3.0 (for Memory Map)
  • Compliance to OSFP MSA
  • Supports 40-Gbps aggregate data-rate links up to 100m
  • Low power consumption of max 1.5 W (Compliant to Power Level 1)
  • Full Digital Diagnostics Monitor Interface
  • 0 to 70°C case temperature operating rang
  • 0 to 70°C case temperature operating range
  • RoHS Compliance and Lead-Free
  • 40GBASE-SR4 Ethernet links
  • InfiniBand QDR, DDR, and SDR
  • 4G/8G/10G Fiber Channel
  • SATA/SAS Storage
  • HPC Interconnects
  • Proprietary Interconnections
Ordering Information
P/N Meters P/N Meters
C04010QARL001 1m C04010QARL015 15m
C04010QARL003 3m C04010QARL020 20m
C04010QARL005 5m C04010QARL025 25m
C04010QARL007 7m C04010QARL030 30m
C04010QARL010 10m C04010QARLxxx 0~100m*
