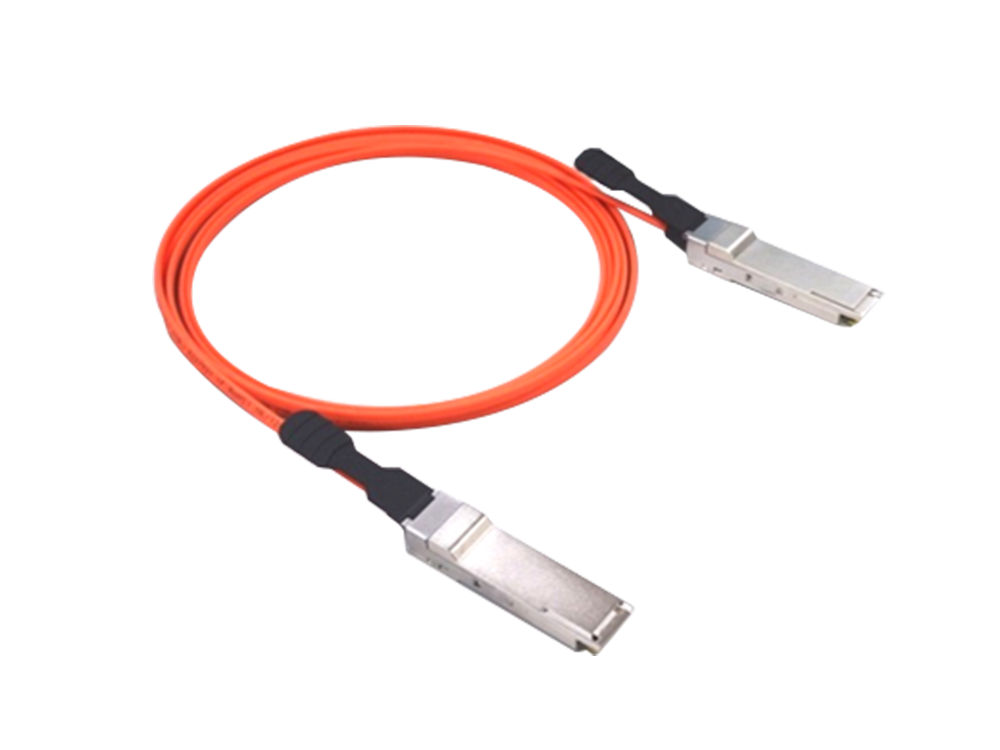

56-Gbps QSFP+ Active Optical Cable

  • 4-channel bi-directional AOC with aggregate bandwidth of 56-Gbps (Electrical Interface Only)
  • Compliant to SFF-8436 QSFP+ Specification Revision 4.1
  • Supports 56-Gbps aggregate data-rate links up to 100-m
  • Low power consumption of max 1.5 W (Compliant to Power Level 1)
  • Full Digital Diagnostics Monitor Interface
  • Hot pluggable electrical interface
  • 0 to 70°C case temperature operating range
  • RoHS Compliance and Lead-Free
  • InfiniBand FDR, QDR, DDR, and SDR
  • 40GBASE-SR4 Ethernet links
  • 4G/8G/10G Fiber Channel
  • SATA/SAS Storage
  • HPC Interconnects
  • Proprietary Interconnections
Ordering Information
P/N Meters P/N Meters
C04014QARL001 1m C04014QARL015 15m
C04014QARL003 3m C04014QARL020 20m
C04014QARL005 5m C04014QARL025 25m
C04014QARL007 7m C04014QARL030 30m
C04014QARL010 10m C04014QARLxxx 0~100m*
