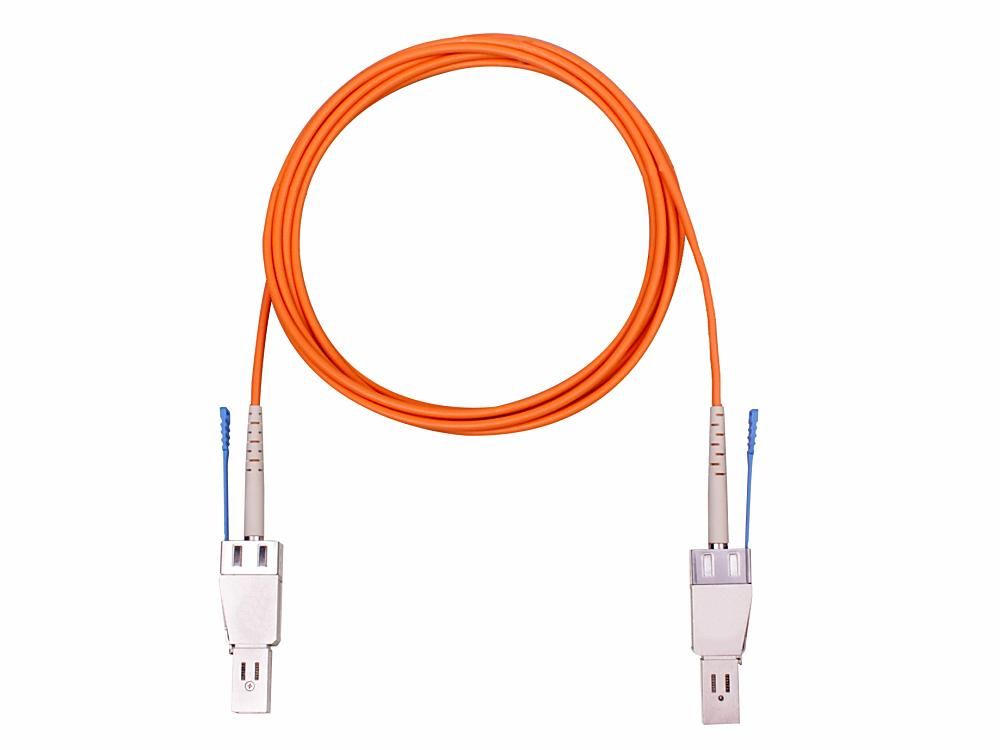

48-Gbps Mini-SAS HD Active Optical Cable for SAS3.0 Application

Feature
  • 4Tx/Rx, Full-Duplex AOCs, Maximum aggregate speed of 48-Gbps for SAS-3.0
  • Backwards compatible to 6-Gbps SAS-2.1 of optical-mode capable systems with
  • out-of-band (OOB) signal supported
  • Bit-Error-Ratio (BER) better than 10-12
  • Link length up to 100-m via OM3 MMF
  • Round cable with small 3.0-mm outer diameter for flexible routing and easy cable management
  • Compliant to SFF-8644 MSA standard in mechanical consideration
  • Management interface compliant to SFF-8636
  • QSFP+ to Mini-SAS HD AOC with different form-factors over two ends is available upon customer request
Applications
  • Storage, Switch, & Server Systems
  • Workstations
  • High-Performance Computing (HPC)
Ordering Information
P/N Meters P/N Meters
C04012M2ML001 1m C04012M2ML015 15m
C04012M2ML003 3m C04012M2ML020 20m
C04012M2ML005 5m C04012M2ML025 25m
C04012M2ML007 7m C04012M2ML030 30m
C04012M2ML010 10m C04012M2MLxxx 0~100m*
