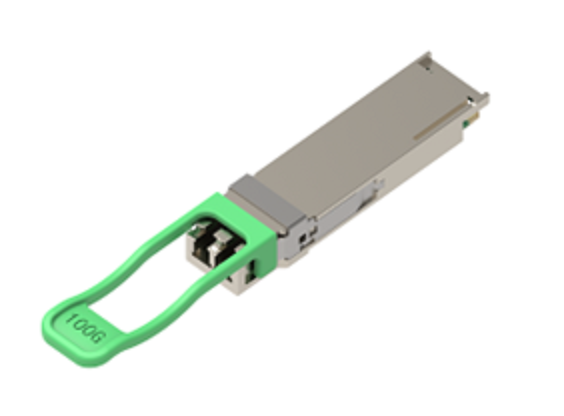

100-Gbps QSFP28 CWDM4 Optical Transceiver

  • Comply with IEEE 802.3bm.
  • Comply with QSFP28 MSA
  • Hot-pluggable QSFP28 form factor
  • Power dissipation < 3.5W
  • Single 3.3V power supply
  • Loss budget of 5 dB on up to 2km of SMF [with KR4 FEC]
  • RoHS-6 Compliant (lead-free)
  • Case temperature range of 0°C to +70°C
  • 4x25 Gb/s CWDM transmitter
  • 4x25G retimed electrical interface.
  • Duplex LC receptacles
  • I2C management interface
  • 100GBASE Ethernet links up to 2km over SMF
  • InfiniBand EDR, FDR, & QDR
  • HPC Interconnects
  • Proprietary Interconnections
Ordering Information
  • P/N:  A100DQF702KA
